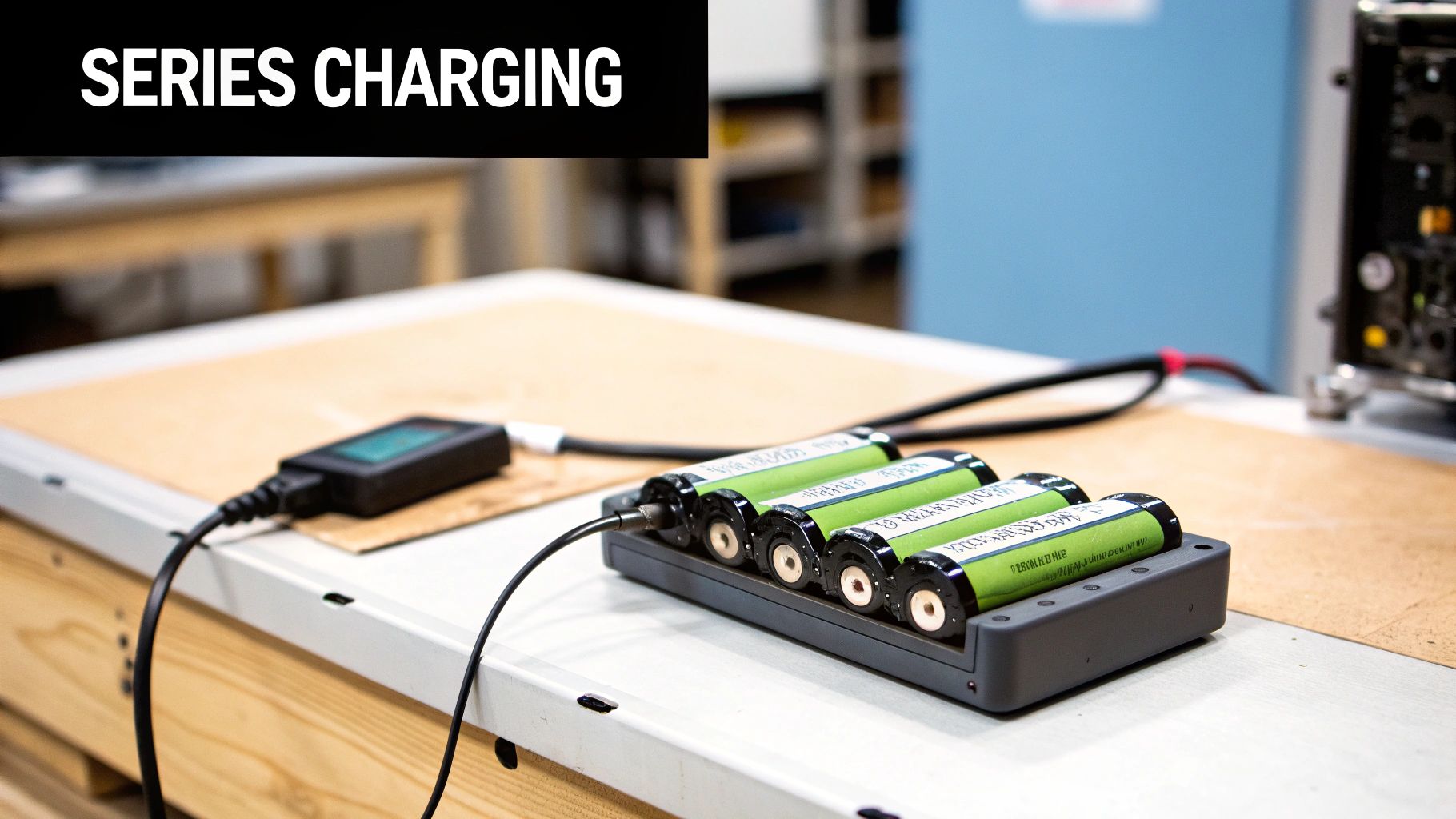

A series battery charger is a specific type of charger built to recharge multiple batteries that are connected end-to-end. It’s designed to treat the entire group as a single, more powerful, higher-voltage unit.
Imagine you're filling a chain of water buckets with a single hose. The same amount of water (the current) flows through each bucket one by one, and as you stack them, the total height (the voltage) gets higher. This method is the secret behind powering devices that need a lot of electrical muscle, like electric golf caddies and heavy-duty multi-cell power tools.
The Foundation of Series Charging
When you connect batteries in series, you’re basically building a stronger energy source by combining their individual power. The principle is simple but incredibly effective, and getting a handle on it is the key to keeping your battery pack healthy and performing at its best.
The main goal of a series connection is to increase the total voltage of the system. For instance, if you link two 12-volt batteries together in series, you get a 24-volt pack. This extra voltage is what you need to run powerful motors, like the one in the Caddie Wheel, which demand more electrical "pressure" to deliver consistent power over 18 or even 36 holes.
How Series Connections Work
In a series circuit, the positive terminal of one battery connects to the negative terminal of the next, forming an unbroken chain. This setup forces the electrical current to flow through every single battery, one after the other.
Because there's only one path for the current to follow, each battery in the pack gets the exact same amount of charging current. This uniformity is a huge advantage. It helps prevent individual cells from getting overworked or undercharged, which leads to a longer, healthier life for the entire pack.
The key takeaway here is that in a series circuit, voltage adds up, but the capacity (measured in Amp-hours or Ah) stays the same as a single battery. So, your 24-volt pack made from two 12V 20Ah batteries will still have a 20Ah capacity—it just delivers it with double the power.
Why This Method Is So Prevalent
The huge demand for powerful and efficient portable electronics has pushed charging technology forward in a big way. The global battery charger market was valued at around USD 23.37 billion in 2024 and is expected to climb to over USD 38.27 billion by 2032.
A lot of that growth is coming from industries like electric vehicles, where series battery setups are the go-to for achieving the high voltages needed to move a car. You can explore more data on the battery charger market to see how these trends are shaping the technology we use every day.
This widespread use proves just how effective series charging is for anything that needs a smart balance of power, efficiency, and reliability. By understanding these basics, you can better appreciate the engineering inside your gear and see why using the right series battery charger is so critical for top performance and safety.
Series Charging vs Parallel Charging Explained
When you need to charge more than one battery at a time, there are two ways to do it: in series or in parallel. Getting the difference is crucial because each method completely changes how a battery pack delivers power, how long it lasts, and how it needs to be charged. Your choice here directly impacts the performance and safety of your gear.
Think of series charging like a single-file line at a movie theater. Every person (each battery) gets served one by one from the same cashier (the charger). As more people join, the line gets longer, which is like the voltage adding up.
On the other hand, parallel charging is like a grocery store opening up multiple checkout lanes. Each lane (or battery) gets its own cashier, letting more people (capacity) get through at once without making any single line longer.
The Core Electrical Differences
The biggest distinction between series and parallel charging is how they handle voltage and capacity. When you connect batteries in series, you’re linking the positive terminal of one battery to the negative terminal of the next. This creates a single, unbroken path for electricity to flow.
This setup makes the individual voltages add up. For example, if you connect two 12V batteries in series, you create a single 24V system. The capacity, measured in Amp-hours (Ah), stays the same as one of the single batteries in the chain.
Parallel connections are the opposite. You connect all the positive terminals together and all the negative terminals together. This keeps the voltage the same as a single battery but adds up the capacity of each one. So, hooking up two 12V 20Ah batteries in parallel gives you a 12V system with a total of 40Ah of capacity.
Why Voltage Matters More for Power
For devices that need a lot of muscle, like the motor in an electric golf caddy, higher voltage is everything. Voltage is like electrical pressure—the higher it is, the more punch it has to push current to a motor. This is what helps it tackle steep hills and maintain a steady speed.
Key Takeaway: Series charging builds higher voltage for more powerful applications, while parallel charging builds higher capacity for longer runtimes in lower-voltage systems.
A series battery charger is built specifically to manage the higher total voltage of the entire pack. It pushes the exact same amount of current through every single cell in the chain, making sure they all charge up together. This uniformity is absolutely vital for the battery pack's long-term health.
Balancing and Safety Considerations
One of the most important jobs in series charging is cell balancing. Because the same current flows through every battery, even tiny differences in their health or starting charge can get worse over time. One cell might hit full charge before the others, leading to overcharging, while another might lag behind and end up undercharged.
This is where a good series charger, often paired with a Battery Management System (BMS), comes in. It keeps an eye on each cell individually and makes sure they all reach the finish line together in a balanced state.
Parallel charging, in contrast, is somewhat self-balancing. Since all the batteries are connected at the same voltage points, they naturally share the work and tend to even out their charge levels. However, this method can take longer to charge a high-capacity pack and just isn't cut out for high-voltage jobs. For those maintaining lower-voltage systems, like some golf carts, you might explore other options like a specialized trickle charger for golf cart batteries to keep them topped off.
To make things even clearer, let's look at a side-by-side comparison of the two charging methods.
Key Differences Between Series and Parallel Charging
This table breaks down the fundamental characteristics of series and parallel battery charging, from voltage and capacity to charging time and safety.
| Characteristic | Series Charging | Parallel Charging |
|---|---|---|
| Voltage | Voltages of all batteries add up. | Voltage remains the same as a single battery. |
| Capacity (Ah) | Capacity remains the same as a single battery. | Capacities of all batteries add up. |
| Current Flow | The same current flows through every battery. | The total current is divided among the batteries. |
| Best For | High-power applications (e.g., electric caddies, EVs). | High-capacity, long-runtime applications. |
| Balancing | Crucial. Requires a BMS or smart charger. | Generally self-balancing. |
For a device like the Caddie Wheel that needs serious power to climb hills and keep going for up to 36 holes, the choice is clear. The high-voltage output created by connecting batteries in series is simply the better way to go.
How a Series Battery Charger Really Works
A modern series battery charger is a lot more than just a power cord. Think of it as an intelligent device, a personal trainer for your battery pack, whose job is to replenish its energy safely and efficiently. It ensures every single cell in the series chain is primed and ready for action.
This isn't a simple, brute-force power dump. Instead, it’s a carefully managed two-stage routine designed to protect your battery's long-term health. The process almost always follows a specific sequence known as CC/CV, which stands for Constant Current/Constant Voltage. It’s like a two-part workout: a high-intensity phase to build strength quickly, followed by a cool-down period to fine-tune the results.
The Constant Current (CC) Phase
First up is the Constant Current (CC) phase. During this stage, the charger delivers a steady, consistent flow of electrical current to the battery pack. Imagine filling a large, empty tank with a hose turned on full blast—the goal is to get the bulk of the work done as fast as possible.
This is where most of the battery’s capacity gets restored, often bringing it up to around 80% of its total charge. The charger pushes current at a fixed rate, and you'd see the battery pack's voltage steadily climb as it fills up.
The Constant Voltage (CV) Phase
Once the battery pack’s voltage hits a specific peak—the maximum safe voltage for the entire series string—the charger switches gears. It enters the Constant Voltage (CV) phase, which is the "cool-down" part of the process.
Here, the charger holds the voltage steady at that peak level and lets the current gradually taper off. The battery is like a sponge that's almost full; it can only absorb the remaining power at a slower rate. This careful topping-off is crucial for safely filling that last 20% of capacity without causing damage from overcharging.
A smart charger knows exactly when to shift from CC to CV. This transition prevents overheating and stress on the cells, which is absolutely fundamental to preserving the battery pack's lifespan and ensuring its safety.
The Unsung Hero: The Battery Management System (BMS)
While the charger is directing the flow of energy, the real brain of the operation is the Battery Management System (BMS). This small electronic circuit board lives inside the battery pack itself and acts as a vigilant supervisor, monitoring every individual cell in the series.
The BMS handles several critical jobs that a charger alone cannot:
- Overcharge Protection: It stops any single cell from exceeding its maximum safe voltage during charging. If one cell fills up faster than the others, the BMS can intervene to cut the current, protecting the entire pack.
- Discharge Protection: It ensures the pack doesn't get drained too low during use, which can cause irreversible damage.
- Temperature Monitoring: It keeps an eye on the pack's temperature and can shut things down if it gets too hot or too cold.
- Cell Balancing: This is probably its most vital role in a series setup. The BMS actively works to keep all the cells at an equal state of charge. Without it, imbalances could quickly lead to poor performance and a much shorter lifespan for the pack.

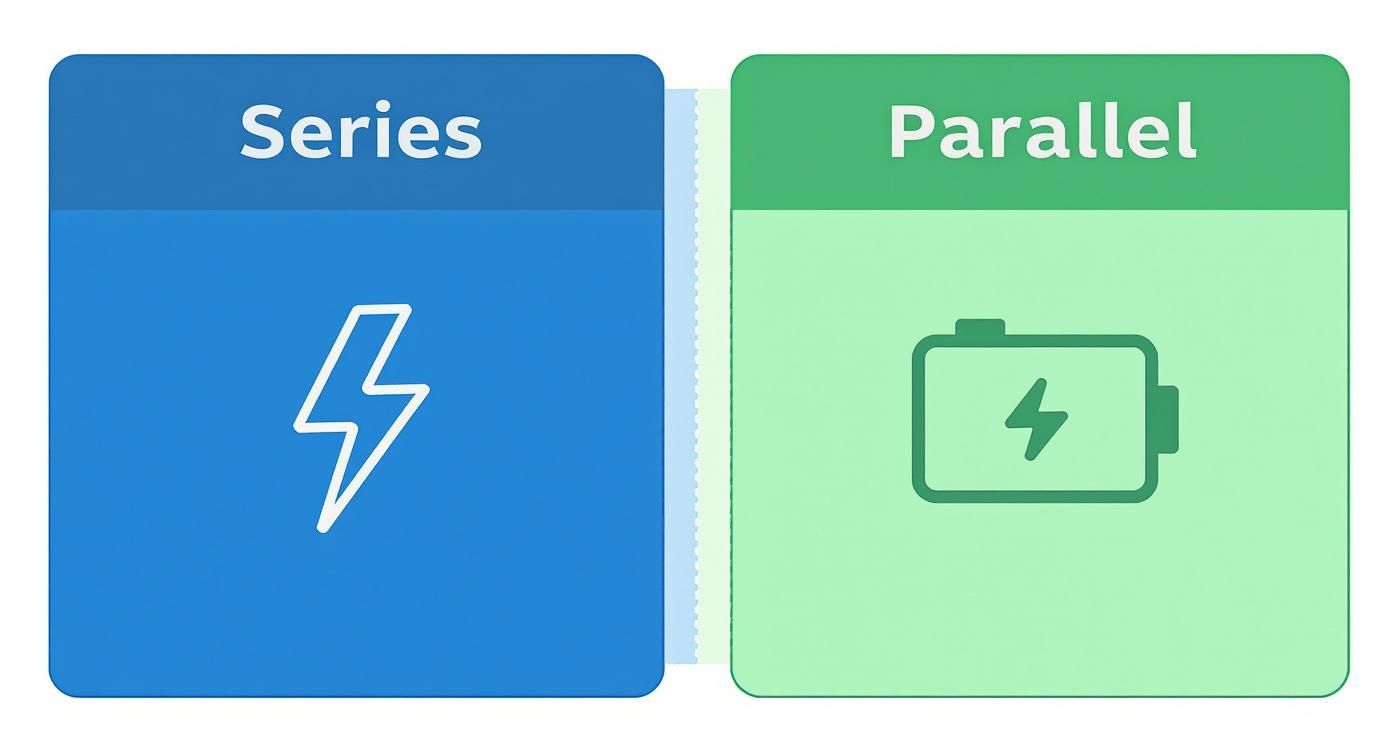

This diagram helps visualize the core differences between connecting batteries for higher voltage versus higher capacity.
You can clearly see how a series connection stacks voltage for more power, while a parallel connection combines capacity for longer runtime. This is exactly why series configurations, managed by a smart charger and BMS, are essential for power-hungry devices.
As battery technology gets better, charger designs have to keep up. The rechargeable battery world has seen huge advancements, with newer chemistries like lithium-sulfur offering energy densities up to 500 Wh/kg—a massive leap from older types. Chargers have adapted to manage these higher-capacity batteries safely, controlling voltage and temperature with greater precision than ever before. You can learn more about the evolution of rechargeable batteries and see how it has shaped modern charging technology.
Essential Safety Practices for Series Charging
When you're dealing with a powerful series battery pack, a healthy dose of respect and attention to detail is non-negotiable. Think of it like this: you wouldn't tee off without checking your clubs, so you should never, ever skip the basic rules of safe charging. Following these practices isn't just about protecting your equipment—it's about keeping yourself safe.
The number one, most important rule is to always use the correct charger for your specific battery pack. A charger isn’t a one-size-fits-all accessory. It’s engineered to match your pack's total voltage, its chemistry (like Lithium-Ion), and its capacity. Grabbing the wrong one is one of the fastest ways to cause permanent damage or, worse, create a serious safety hazard.
Recognizing Warning Signs
Your battery and charger are pretty good at telling you when something's off. You just have to know what to look—and smell—for. Paying close attention during every charge cycle is the key to catching small issues before they become big problems.
Immediately unplug everything and stop charging if you spot any of these red flags:
- Excessive Heat: It's normal for the charger and battery to get a bit warm, but they should never be too hot to comfortably touch.
- Swelling or Bulging: Any change in the battery pack's shape is a major warning sign. It points to internal cell failure and is not something to ignore.
- Strange Odors: If you smell anything sharp, chemical, or like something is burning, that's a clear signal something is wrong inside.
- Leaking Fluid: Any fluid seeping from the battery pack means a seal has been compromised. This is a potential chemical hazard.
If you encounter any of these warning signs, disconnect the power source immediately. Move the battery to a safe, isolated spot on a non-flammable surface and leave it there. Do not try to use it or charge it again until a professional has inspected it.
Creating a Safe Charging Environment
Where you charge your battery is just as critical as how you charge it. Setting up the right environment is a simple, effective step that dramatically reduces risk.

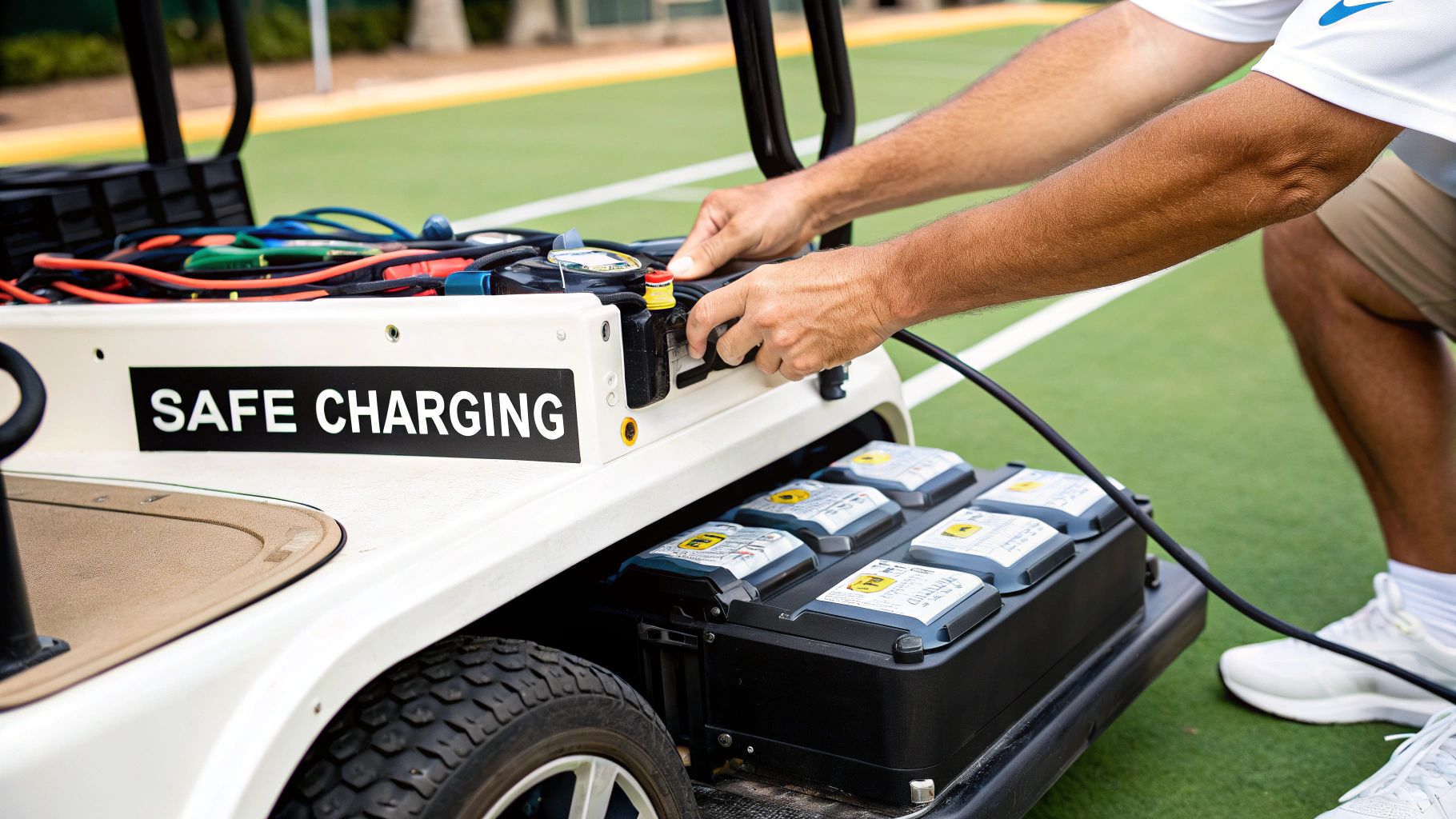

Always choose a well-ventilated area on a hard, non-flammable surface like a concrete garage floor. Never charge on carpet, wood, or near flammable items like paper, fabric, or chemicals. Good airflow is crucial for dissipating the heat that’s a natural byproduct of charging.
You'll also want to avoid charging in extreme temperatures. Both scorching heat and freezing cold can mess with the battery's ability to take a charge and will shorten its lifespan over time. A cool, dry location is always your best bet. For a deeper dive into extending battery life through smart habits, our comprehensive guide offers plenty more golf cart battery charging tips for max longevity.
Beyond these specifics, it's smart to be up-to-date on general electric equipment safety. Many of the core principles of battery care apply across different devices. For example, these essential electric bike safety tips offer great insights on battery handling that are universally helpful for anyone using rechargeable power packs. Following these established best practices will help you manage your charging routine with confidence and minimize every potential risk.
Charging Your Series Battery Pack Step by Step
Charging a series battery pack, like the one that powers your Caddie Wheel, is pretty simple. But getting the steps right is key to keeping your battery healthy and safe for the long haul. Think of it like a pre-flight checklist; taking a moment to do things in the proper order makes all the difference.
Let’s walk through the entire process, from finding the right spot to unplugging it safely.
First things first: preparation. Before you even think about plugging anything in, find a good spot to charge. You'll want a hard, stable, and non-flammable surface—a concrete garage floor is perfect. Stay away from carpets or wooden benches. The area should also be cool, dry, and have good ventilation to let any heat from the charger escape.
The Connection Sequence
Once you have your charging area set up, follow this specific order for connecting everything. This isn't just a suggestion; it's a universal best practice to prevent sparks or short circuits with any high-power battery.
- Charger to Wall First: Plug your series battery charger into a working wall outlet. You should see an indicator light on the charger turn on, usually green, which tells you it has power and is ready to go.
- Charger to Battery Second: Now, connect the charger's output cable to the charging port on your series battery pack. Make sure the connector clicks in and feels snug.
This "wall first, battery second" rule is critical. It ensures the charger is already powered up and stable before it sends any electricity to the battery, which dramatically reduces the risk of a spark right at the connection point. For more details on this, our complete guide to using a lithium battery charger for a golf cart is a great resource.
Monitoring the Charge
With everything plugged in correctly, the charging process will kick off automatically. The indicator light on your charger is the best way to know what's happening.
- Solid Red Light: This is the universal sign that the battery is actively charging. The charger is pushing the bulk of the energy into the cells.
- Solid Green Light: This means the charging cycle is complete. The charger has topped off the battery and switched into a standby or "float" mode to maintain the charge without overdoing it.
A full charge for a Caddie Wheel battery pack typically takes 4-6 hours. It's important to let the cycle finish completely. This gives the Battery Management System (BMS) enough time to properly balance all the individual cells inside the pack.
Disconnecting and Pro Tips
When that light turns green, you're good to go. Disconnecting is just the reverse of how you connected it: unplug the charger from the battery pack first, then unplug the charger from the wall outlet.
Want to get the most out of every charge and make your battery last as long as possible? Keep these pro tips in mind:
- Let It Cool Down: After a round of golf, give the battery 30-60 minutes to cool down before you plug it in. Charging a battery when it's still warm can cause damage over time.
- Don't Leave It Plugged In: Modern smart chargers are designed to prevent overcharging, but it's still not a great idea to leave the battery connected for days on end. Unplug it within a few hours of it finishing.
- Charge After Use: Always top off your battery after each use, even if you only played a few holes. Storing a battery with a low charge is one of the quickest ways to reduce its overall capacity.
Properly charging your series battery pack isn't just about getting ready for the next round; it's a huge factor in its lifespan. You can learn more great habits from guides on how to prolong ebike battery life, as the principles are very similar.
Troubleshooting Common Charger Problems
Even the best series battery charger can have an off day. When it happens, don’t panic. A few simple troubleshooting steps can usually get you back up and running without needing a replacement. Let's walk through a quick diagnostic sequence to figure out what’s going on.
Before you start assuming the worst, always check the simple stuff first. So many charging failures come down to something minor that’s easy to overlook. A methodical check of your entire setup is the fastest way to solve the puzzle.
Charger Does Not Power On
You plug in your charger, but the indicator lights stay dark. Nothing happens. More often than not, the issue isn't the charger itself, but the power source or a connection. It’s always best to rule out these external factors before concluding the charger is dead.
Here’s a simple checklist to run through:
- Check the Wall Outlet: This is the most common culprit. Unplug your charger and plug in something you know works, like a lamp or your phone. If that doesn't power up, you've found your problem.
- Look for a Tripped GFCI: Garages and outdoor spaces often have outlets with a Ground Fault Circuit Interrupter (GFCI). These have "Test" and "Reset" buttons. Give that "Reset" button a firm push to see if it restores power.
- Examine the Power Cord: Give the charger's AC power cord a good look. Check for any cuts, frays, or bent prongs at the plug. A damaged cord isn't just a point of failure; it's a serious safety hazard.
If you’ve tried all three and there’s still no sign of life, the problem might be internal to the charger.
Important Takeaway: Always start with the power source and cables. It’s estimated that over 50% of reported electronic failures are actually just power or connection issues, not a broken device. This simple habit can save you a world of frustration.
Battery Fails to Take a Charge
Okay, so the charger turns on, but your battery pack isn't charging. This usually points to a problem with the connection between the charger and the battery, or something going on inside the battery pack itself.
First, make sure the charger's output connector is plugged securely into the battery’s charging port. A loose connection is an easy fix. If it's snug, take a moment to inspect the metal contacts on both the charger plug and the battery port. Gently wipe them with a dry cloth to clear away any dust or grime that could be blocking the electrical flow.
Still no luck? The battery pack’s internal Battery Management System (BMS) might have put itself into a protective "sleep" mode, usually because it was discharged too deeply. Sometimes, leaving the charger connected for a few hours can be enough to wake it up. If it stays unresponsive after that, it likely needs a professional look.
The need for smarter, more dependable charging solutions is only growing. The global battery charger market was valued at nearly USD 26.9 billion in 2024 and is expected to climb to around USD 39.8 billion by 2033. This growth is driven by our reliance on intelligent systems that can safely manage today’s complex battery packs. Discover more insights about the battery charger industry's growth and see how the technology continues to advance.
Got Questions? We’ve Got Answers
Even after you get the hang of how a series battery charger works, a few practical questions almost always pop up. Getting straight answers builds confidence and makes sure you’re handling your gear the right way, every single time. Let’s tackle the most common ones to clear up any confusion.
Can I Use a Different Charger for My Series Battery Pack?
This is a big one, so let’s be crystal clear: do not use any charger other than the one that came with your series battery pack. It’s a bad idea, and here’s why.
Chargers aren't universal accessories. They are engineered to perfectly match the pack's total voltage, the current it needs to charge safely, and its specific battery chemistry (like Lithium-Ion). Using the wrong one is a gamble. At best, you’ll get an incomplete charge and lousy performance. At worst, you could permanently fry your battery or create a serious fire hazard from overheating. Always, always stick with the manufacturer's charger.
How Do I Know if the Cells in My Series Pack Are Balanced?
Good news—you don’t have to. For most modern gear, including the Caddie Wheel, the built-in Battery Management System (BMS) handles all the cell balancing for you. It’s an automatic, background process that happens every time you charge.
The system is designed to be self-sufficient. But if you ever notice a sudden, major drop in performance—say, your caddy dies halfway through a round when it used to last all 18 holes—that could point to a cell imbalance or a failing cell. In that rare case, it's time to call the manufacturer or a pro. Don't try to diagnose or fix it yourself.
Key Insight: The BMS is the unsung hero of your battery pack. It’s engineered to manage all the complex balancing acts behind the scenes so you don't have to. Just focus on proper charging habits and let it do its job.
Is It Normal for My Battery and Charger to Get Warm?
Yes, it’s completely normal for both the battery and the charger to feel warm to the touch while charging. This is just a natural byproduct of electricity doing its thing—transferring and converting energy generates a little heat. Think of it as a sign that everything is working as it should.
However, there’s a big difference between warm and hot. If either the battery or charger becomes too hot to comfortably touch, or if you catch even a faint whiff of burning plastic, that’s a red flag.
Excessive heat is a clear warning that something is wrong. If you ever experience this, immediately unplug the charger from the wall outlet first, then disconnect it from the battery. Don't ignore it. Let both parts cool down completely in a safe, open area before looking into it any further.
Experience the difference of effortless power on your next round. The Caddie Wheel delivers robust performance, easy setup, and the freedom to walk the course without the strain. Upgrade your golf push cart today.
