usb port for golf cart installation: step-by-step guide

A dead phone on the back nine is practically a modern-day crisis. We've all been there. That's why adding a dedicated USB port for a golf cart is such a game-changing upgrade. It takes you way beyond those flimsy, unreliable power banks and makes your cart as functional as your car.

Why a USB Port Is Your Next Best Golf Cart Upgrade

Imagine running your GPS rangefinder app all day without a flicker of battery anxiety. Or maybe you want to stream your favorite playlist from the first tee to the eighteenth green, or just make sure your passengers can stay connected. It's a simple modification, but it completely transforms your golf cart from a basic ride into a connected hub for your entire round.

This is about more than just convenience; it’s about upgrading the whole on-course experience.

Honestly, this is one of the most practical DIY projects you can tackle. It gives you an immediate boost in your cart's usability and can even bump up its resale value. Plus, you can finally stop remembering to charge those portable chargers and untangling a mess of cables from your golf bag.

More Than Just a Charging Point

A properly installed USB port gives you a reliable, weatherproof power source that’s hardwired right into your cart. This isn't some temporary fix; it provides a stable and safe charge for all the gear you rely on, like:

• Smartphones and GPS rangefinders
• Portable speakers for your on-course soundtrack
• Golf shot trackers and other training gadgets

Adding modern conveniences like USB ports is a huge trend. The global golf cart market, valued at around US$ 2.85 billion in 2025, is expected to hit US$ 4.18 billion by 2032. A big driver of that growth is the demand for these kinds of advanced features, showing just how standard these upgrades are becoming.

This is a permanent solution that seamlessly brings modern tech into your golf game. It just makes every round more enjoyable and a lot less stressful.

Getting a USB port installed is also a fantastic gateway into personalizing your cart. Once you see how easy it is, it might inspire you to do more. For anyone looking to keep the upgrades coming, check out our guide on other cool accessories for golf carts to upgrade your ride. This one small project can open the door to all sorts of other fun and useful modifications.

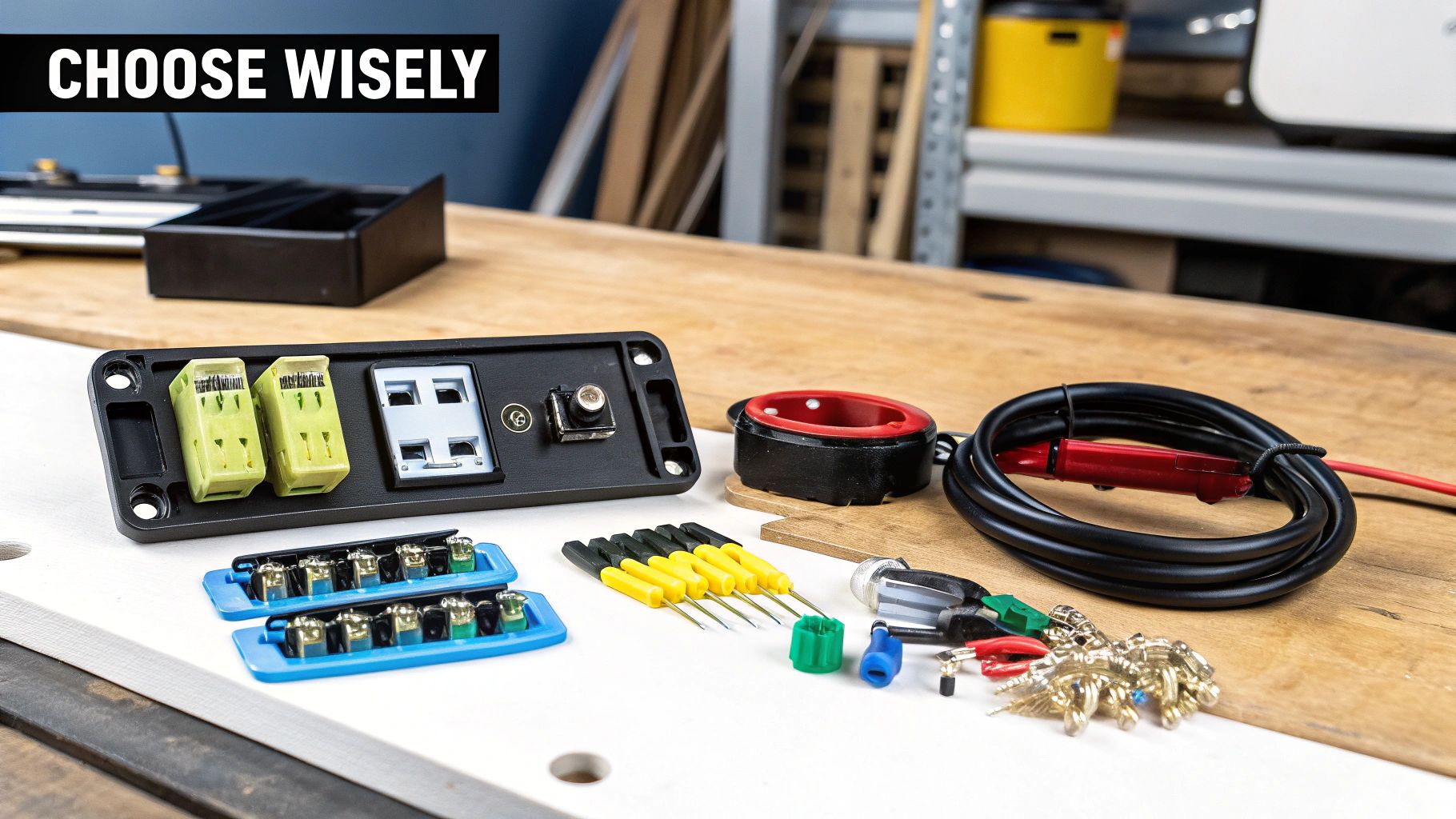

Choosing the Right Hardware for the Job

Before you even think about drilling holes in your dashboard, let's get the hardware sorted out. Honestly, the success of this entire project hinges on picking components that can handle the outdoors and your cart's specific electrical system. Getting this right from the start will save you a world of headaches down the road.

The main event here is, of course, the usb port for golf cart itself. Don't just grab the cheapest one you find online. You need to look for a unit that is specifically marine-grade or has an IP (Ingress Protection) rating of at least IP66. This rating guarantees it’s sealed tight against dust, rain, and the inevitable hose-down after a muddy round.

Also, give some thought to the charging tech. A port with Quick Charge (QC) 3.0 or Power Delivery (PD) will juice up modern phones and devices way faster than a standard, old-school USB-A port. It's a small detail that makes a huge difference when you're in a hurry.

To help you pick a port that's built to last, I've put together this quick comparison table. It breaks down the essential features you should look for.

Essential Features for a Golf Cart USB Port

Using this table as a guide will steer you toward a high-performance port that can handle the tough environment of a golf course.

Your Complete Shopping List

Getting this installation done in one go means having all your parts ready before you start. Here’s a checklist of everything you'll need to gather:

• Marine-Grade USB Port: A weatherproof model with a good, tight-fitting protective cover is a must.
• 16-Gauge Automotive Wire: Grab both red and black spools to keep your positive and negative connections obvious and safe.
• In-Line Fuse Holder: This is a critical safety piece. It's the first line of defense for your wiring.
• 3A or 5A Blade Fuses: Start with a couple of these. They're cheap, and it's always good to have a spare.
• Heat-Shrink Crimp Connectors: These create a secure, water-resistant connection for your wires. Don't skip the heat-shrink part!
• Voltage Reducer (for 36V/48V carts): This is absolutely non-negotiable for electric carts. More on this below.

If you want to dive deeper into the nitty-gritty, checking out a guide on selecting appropriate electrical fittings and materials is a great way to ensure you pick durable and compatible parts for any project.

The Non-Negotiable Voltage Reducer

If you have a 36-volt or 48-volt electric golf cart, listen up: the voltage reducer is the single most important component on your list. Your cart's battery pack pushes out a much higher voltage than the 12 volts that standard accessories, like a USB port, are designed for.

Connecting a 12V USB port directly to a 36V or 48V battery pack will instantly fry the port. It will be toast. Even worse, it could damage any device you have plugged into it. A voltage reducer safely "steps down" the power to a usable 12V.

Look for a reducer rated to handle at least 10 amps. This gives you plenty of power for the USB port and leaves extra capacity if you decide to add other 12V accessories later on, like LED lights or a small radio. The demand for these features is exploding; recent surveys show that over 70% of new golf cart buyers now consider USB charging a must-have feature, which really shows how much people's expectations have shifted.

Finding the Perfect Spot for Your Port

Location is everything when you’re adding a USB port for a golf cart. Where you decide to mount your new port directly impacts how easy it is to use, how protected the wiring will be, and whether it ends up looking like a clean, factory-installed feature. Honestly, taking a few minutes to plan this out is the single best thing you can do to make the whole installation go smoothly.

The most popular spots usually offer a nice balance of easy access and a clean look. Think about where you naturally set your phone down during a round. For most of us, the dashboard is prime real estate—it keeps your phone visible and within arm's reach for checking GPS or queuing up the next song. A well-placed port here just feels right.

Other great options are inside the glove box or on a side panel of the center console. These locations are perfect for keeping charging cables tucked away, which cuts down on clutter and shields the port from a sudden downpour.

Scouting and Checking for Clearance

Once you have a couple of potential spots picked out, it's time to do a little detective work. Before you even think about drilling, you must check what’s behind the panel. I learned this lesson the hard way on one of my first projects. I found a perfect flat spot on a dash, got the drill ready, and at the last second, discovered a major wiring harness and a metal support bracket right behind it.

To avoid that headache, grab a flashlight and peek behind your target area. If you can't get a good look, try gently tapping the surface. A hollow sound is your friend; a solid thud means it's time to find another spot. You can also carefully feel behind the panel with your fingers to check for wires, brackets, or anything else in the way.

Pro Tip: As a rule of thumb, make sure you have at least two inches of clear, unobstructed space behind where you want to mount the port. This gives you plenty of room for the body of the USB charger, the wiring, and your hands while you’re getting everything connected.

This simple check takes just a minute but can save you from a costly mistake. It ensures the port will sit flush and secure without messing with any of your cart's existing parts, and it makes running the power wires a whole lot easier.

Mapping Your Power Source

With your spot picked out, the final piece of the planning puzzle is figuring out the electrical route. If you have a gas cart, you'll most likely tap into the 12V battery system. For a 36V or 48V electric cart, you'll be connecting to the output side of your voltage reducer.

From your chosen mounting spot, identify the closest and safest path to run the positive and negative wires to your power source. Look for existing channels or places you can use zip-ties to keep the wiring tidy and far away from any moving parts like the steering column. A little planning here makes the actual wiring process go much faster.

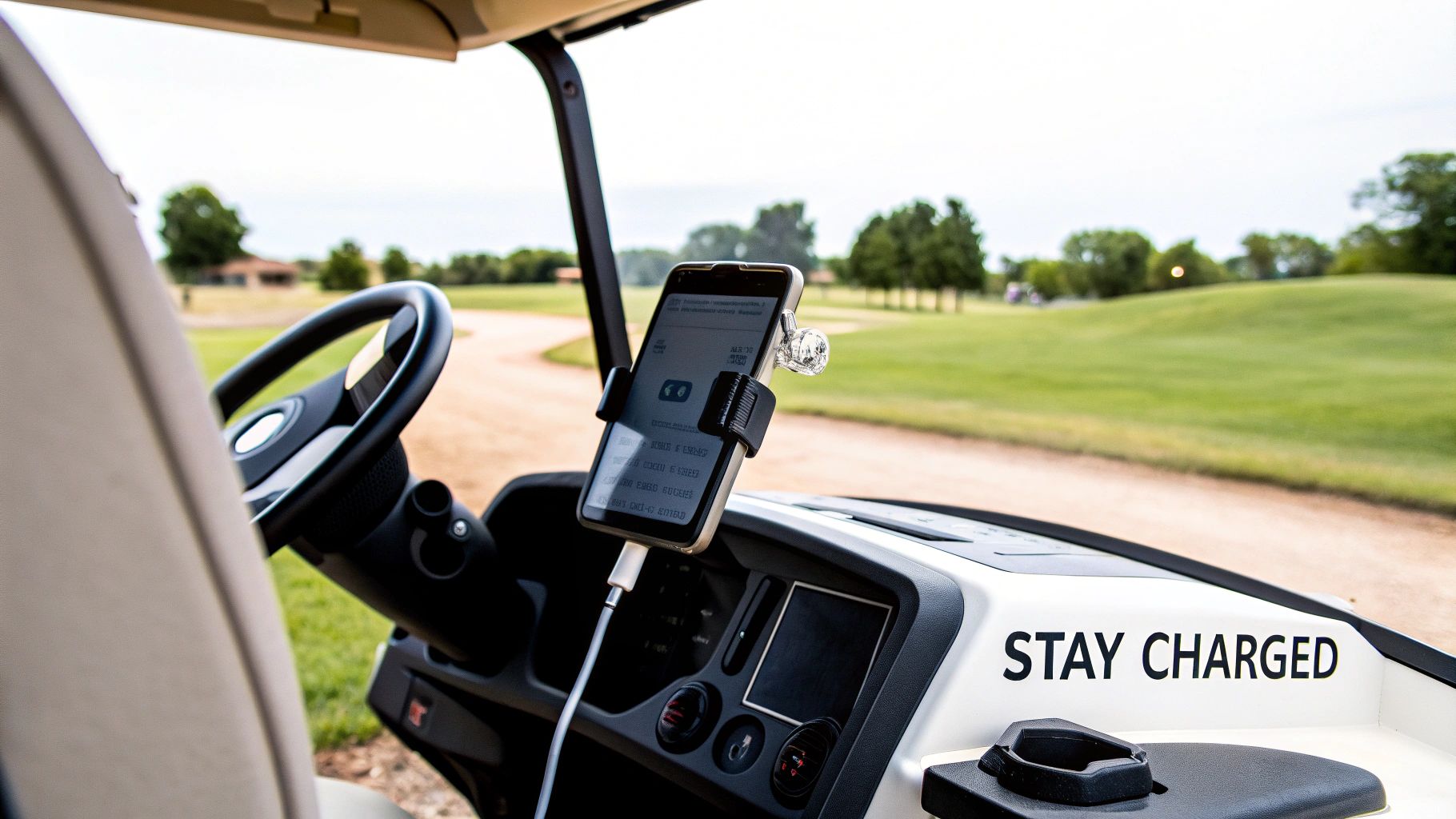

Of course, a charging port is only half the battle. Having a secure place for your phone is just as important, which is why pairing your new port with a reliable cell phone mount for your golf cart is the best way to complete your on-course tech setup.

A Practical Guide to Wiring and Installation

Alright, this is where the planning pays off and we get our hands dirty. With your hardware selected and the perfect spot picked out, it's time to bring your USB port for golf cart installation to life. I’ll walk you through the exact process I’ve used on my own carts, focusing on safety and creating a professional, durable result.

First things first, and this is the most critical step of the entire project: disconnect your cart’s main power source.

For an electric cart, this means switching the tow/run switch to "Tow" and then disconnecting the main negative terminal from your battery pack. On a gas cart, simply disconnect the negative terminal from your 12V starting battery. Don't skip this. It completely eliminates the risk of short circuits or electric shock while you work.

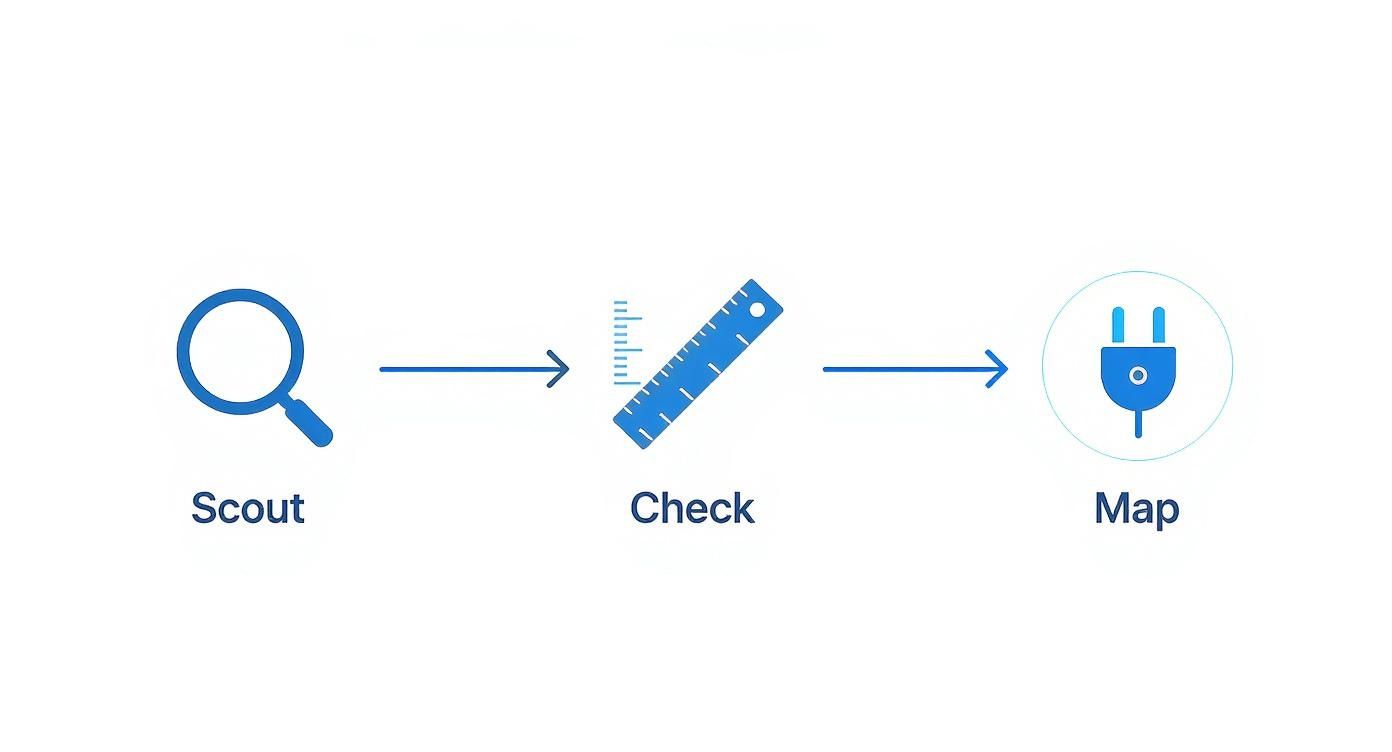

The whole process really boils down to three key stages before you even touch a wire.

This just reinforces the importance of scouting a location, checking for clearance, and mapping your power route before you begin drilling. A little bit of prep saves a lot of headaches.

Creating the Perfect Opening

Now, grab your drill. Most USB ports designed for this kind of installation require a standard-sized hole, often 1-1/8 inches. Using a hole saw bit of the correct diameter is by far the best way to get a perfectly clean, round cut.

Here's a little pro tip: before you drill, apply a piece of painter's tape over the spot you marked. This simple trick prevents the drill bit from "walking" or slipping on the slick plastic, and it helps reduce chipping for a cleaner edge. Drill slowly and steadily, letting the tool do the work.

Once the hole is cut, feed the wires of the USB port through and slide the body of the port into place. You'll secure it from behind with the included retaining nut—hand-tighten it until it's snug. You want it firm enough that it won’t spin, but don’t crank on it so hard that you risk cracking the plastic.

Two Smart Wiring Options

You have two main strategies for wiring your port, and the best one really depends on how you use your cart. The choice comes down to whether you want the port to have power at all times or only when the cart is on.

• Option 1 - Always-On Power: This method involves wiring the port directly to your 12V power source (either the gas cart's battery or the output of your voltage reducer). It’s simpler and gives you charging power even when the key is off.
• Option 2 - Key-Switched Power: This is the approach I almost always recommend. By wiring the positive lead through your cart’s ignition switch, the port only draws power when the key is in the "On" position. This prevents any small, parasitic drain from slowly depleting your batteries when the cart is stored.

For most users, the key-switched method is the superior choice. A USB port can have a tiny idle power draw, even with nothing plugged in. Over weeks or months, this can be enough to drain a battery, so wiring it to the ignition is a smart preventative measure.

A key-switched setup requires you to locate the wire that becomes "hot" when you turn the key. A simple multimeter is your best friend here; you can use it to probe the wires at the back of your ignition switch to find the right one.

Making solid, weatherproof connections is what separates a DIY job from a professional one. For each wire, strip about a quarter-inch of insulation, slide on a piece of heat-shrink tubing, and then crimp the wire securely into a connector. After crimping, slide the tubing over the connector and use a heat gun to shrink it down, creating a tight, water-resistant seal. And don't forget to install your in-line fuse on the positive (red) wire as close to the power source as possible. This is your circuit's primary protection.

Understanding the electrical demands of accessories is becoming more important, especially as carts get more advanced. It’s predicted that by 2033, nearly 60% of new golf carts will feature integrated USB ports from the factory. If you're curious about how much power different accessories use, it’s worth reading our guide on how to calculate power consumption the right way.

Final Safety Checks and Troubleshooting

Alright, you're on the home stretch, but don't put those tools away just yet. The job isn't truly done until you've confirmed everything is safe, secure, and reliable. This is the final step that gives you peace of mind before you trust your brand-new port with a pricey smartphone.

First things first, with the main power reconnected, it's time to grab your multimeter. Before plugging anything into that shiny new USB port for a golf cart, you need to be absolutely sure the voltage is correct. Flip your multimeter to the DC voltage setting (it’s usually marked with a V⎓ symbol) and gently touch the probes to the positive and negative contacts inside the USB port itself.

You’re looking for a reading somewhere between 12V and 14V. If you see a number that makes you jump—like 36V or 48V—disconnect the cart’s main power immediately. A reading that high means your voltage reducer isn't wired correctly. This simple test takes ten seconds and can save you from frying your phone.

Final Inspection and Wire Management

Once you’ve confirmed the voltage is spot on, do one last visual and physical check. Give each of your electrical connections a gentle tug. They should feel solid and secure. A loose connection is a recipe for intermittent charging problems or, in a worst-case scenario, an electrical arc that could become a fire hazard.

Next, run your eyes (and hands) along the entire length of your wiring, from the port all the way back to the battery. Make sure every inch is tucked away neatly and secured with zip ties. You want to keep those wires from ever rubbing against sharp metal edges or getting tangled in moving parts like the steering column. Clean wiring isn't just about looks—it’s a critical safety habit.

A professional-looking installation is a safe installation. Taking a few extra minutes to tidy up your wiring ensures longevity and prevents frustrating issues down the road. It separates a temporary fix from a permanent, reliable upgrade.

Even with the most careful installation, things can sometimes go sideways. If your new port isn't working right, a good guide on troubleshooting common charger port issues can give you some useful diagnostic ideas that apply to more than just phones.

If you hit a snag, here are a couple of the usual suspects:

• No Power at All: Nine times out of ten, this is a blown fuse. Check your in-line fuse first. If the fuse looks good, break out the multimeter again and trace the power from the battery to see where you're losing the connection.
• Slow Charging: This can sometimes just be a cheap charging cable, so try a different one first. If that doesn't fix it, you might have a weak ground connection. Double-check that your negative wire is attached to a clean, solid grounding point.

Got Questions About Your Golf Cart USB Mod?

Even a project that seems as straightforward as adding a usb port for golf cart use can leave you scratching your head with a few questions. Let's walk through some of the most common ones that pop up, so you can finish your installation with total confidence, knowing your new upgrade is both safe and reliable.

One of the biggest (and most important) questions I hear is about sourcing power on electric carts. People always want to know if they can just tap into one or two of the batteries in their pack to get 12V.

The short answer? Absolutely not. Tapping into individual batteries creates a serious imbalance in your battery pack. This forces the tapped batteries to work harder than the others, leading to premature wear and a much shorter lifespan for them. The only correct and safe way to power your accessories is with a dedicated voltage reducer that draws power evenly from the entire pack.

Do I Really Need a Voltage Reducer?

Yes, you 100% do. If you have a 36V or 48V electric cart, a voltage reducer isn't just a good idea—it's a critical safety component. Connecting a 12V USB port directly to that much voltage will instantly fry the port. Even worse, it could send a surge powerful enough to destroy whatever expensive phone or GPS you have plugged into it.

Think of the voltage reducer as an essential translator, safely stepping down your cart's high-voltage battery pack to a usable 12V for your low-voltage accessories.

A voltage reducer is cheap insurance for your expensive gear. It protects both the USB port and your valuable electronics from getting fried by too much voltage, guaranteeing a safe, stable power supply for years.

This one component is what makes adding accessories to any electric cart possible and safe. Don't skip it.

Should I Wire It to the Key or Directly to the Battery?

Wiring your USB port to the ignition switch—so it's "key-switched"—is almost always the best way to go. This setup ensures the port only draws power when the key is on, preventing any nasty surprises.

Why does this matter so much? Even when nothing is plugged in, a USB port has a tiny standby power draw. It’s not much, but this little "parasitic drain" can slowly suck your batteries dry over a few weeks of storage, potentially leaving you with a dead cart right when you want to play a round. An "always on" connection is a bit simpler to wire, but it comes with that risk.

Fuses and Multiple Ports: What You Need to Know

A couple of other technical questions tend to come up around protecting your new setup and maybe even expanding it later. Here are the quick answers:

• What size fuse is best? For most USB port installs, a 3A or 5A fuse is perfect. Remember, the fuse is there to protect the wiring from a short circuit, not the device you're charging. This size is more than enough for any phone or GPS.
• Can I add more than one USB port? For sure. It's easy to wire multiple ports in parallel from the same 12V source (that is, after the voltage reducer). The only thing to watch for is making sure your reducer has a high enough amperage rating to handle the total draw of everything you plan to run at once.
