Think of golf cart fuses as the tiny, unsung heroes of your cart's electrical system. These small, simple components are designed to be the first line of defense against power surges. At their core, they are the weakest link in any circuit—and that's by design. They blow themselves out to protect expensive parts like motor controllers, lights, and chargers from getting fried when things go haywire.
Why Fuses Are Your Cart's First Line of Defense
Before you start pulling wires or immediately blaming a dead battery, take a step back and check the fuses. They're a crucial safety net for your entire electrical system. Imagine a fuse as an intentionally weak point in a chain. If the electrical load suddenly gets too heavy, that little fuse breaks first, saving the rest of the chain—in this case, your pricey electronics—from a total meltdown.
When your cart suddenly dies, the headlights flicker out, or one of your accessories just stops working, a blown fuse is the most common culprit. It's a clear symptom that something went wrong, signaling an overload or a short circuit somewhere in the system. Just swapping in a new fuse without figuring out why it blew is a recipe for frustration. You'll likely end up with recurring problems or, worse, cause even more expensive damage down the road.
The Sacrificial Component
So, how does it work? A fuse contains a thin metal filament engineered to melt and break the circuit the instant an electrical current exceeds its designated rating. For example, a 15A fuse is perfectly happy letting 15 amps of current flow through it, but if that current spikes to 20A, the filament inside will instantly melt, cutting off all power.
This simple, self-sacrificing act protects components that could set you back hundreds of dollars. Without that fuse, an electrical surge could easily destroy your:
- Motor Controller: The expensive "brain" of your electric golf cart.
- Onboard Computer (OBC): Manages the charging cycles on many Club Car models.
- Accessory Wiring: Prevents wires from melting and creating a potential fire hazard.
- Charging Receptacle: Protects the port from faults coming from the charger itself.
The need for robust fuses grew right alongside the popularity of electric golf carts in the mid-20th century. As carts became more powerful, moving to higher voltage battery systems, fuses became an absolutely non-negotiable safety feature to prevent widespread system failures.
A blown fuse isn’t just an annoyance; it’s your cart’s way of telling you that it just saved itself from serious, expensive harm. Learning how to track down and replace one is a fundamental skill for any cart owner.
Armed with this knowledge, a frustrating electrical problem becomes a much more manageable diagnostic task. Understanding how your cart's fuses work lets you confidently troubleshoot issues yourself, saving you a costly trip to the repair shop for what is often a very simple fix.

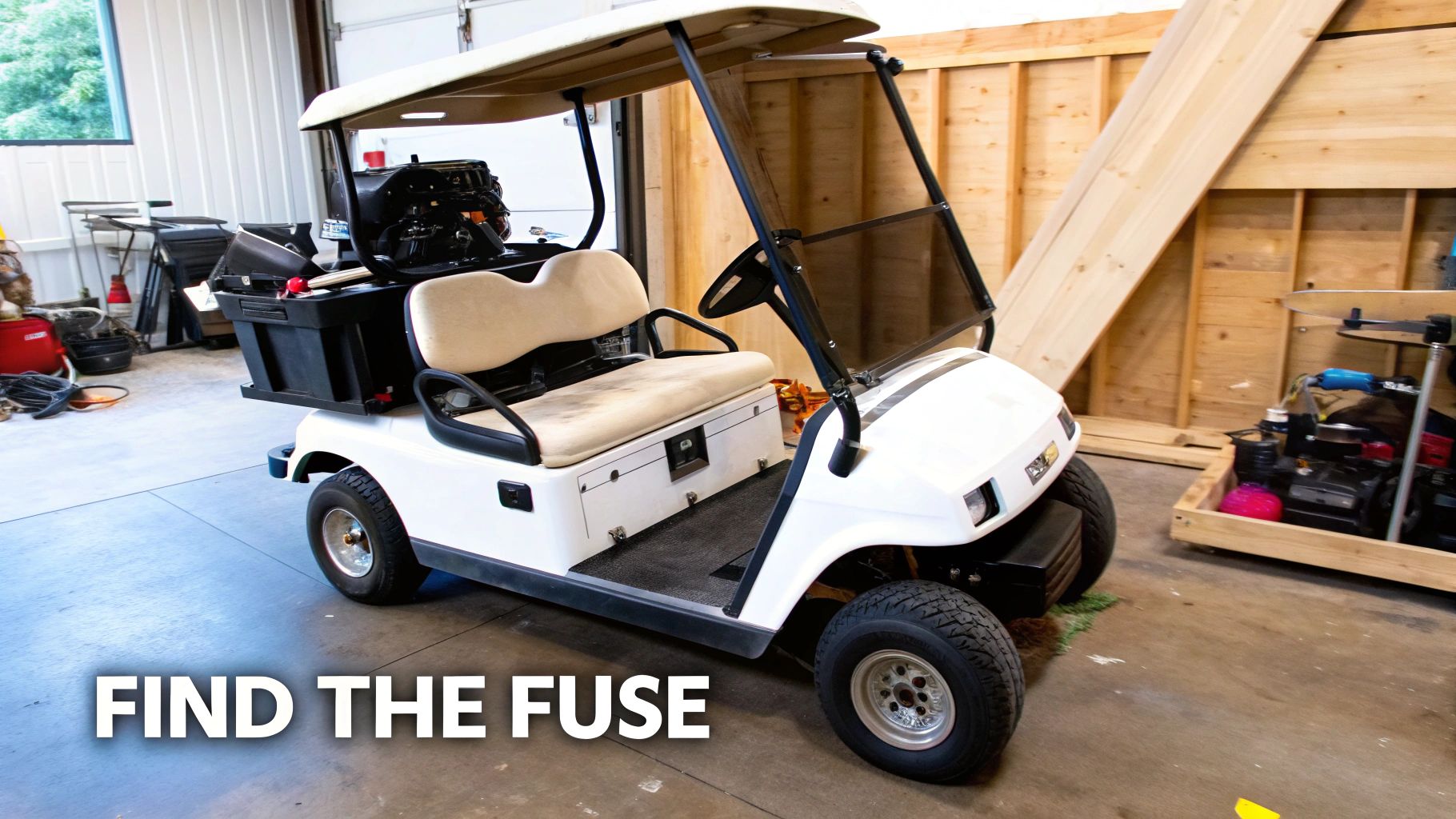

Locating the Fuse Box on Your Golf Cart
Finding the fuse box on your golf cart can sometimes feel like a treasure hunt. The good news is, once you know the common hiding spots, what used to be a frustrating search turns into a quick fix. Manufacturers don't always stick them in the most obvious places, so your starting point really depends on your cart's make and model.
For most modern electric carts, you'll find the primary fuse box in a surprisingly accessible spot. Start by checking the glove box or the storage compartment on the driver's side. On a lot of EZGO and Yamaha models, there’s a small plastic cover here that just pops right off, revealing a block of those familiar automotive-style blade fuses.
If you come up empty, the next logical place to look is directly behind the dashboard. You'll probably need to get low and look up from underneath the dash to spot it. Sometimes, you'll need to remove a few screws to get the panel off. Be careful here—if a screw is giving you trouble, it might be stripped. Knowing how to safely remove stripped screws is a handy skill to have in these situations.
Common Hiding Spots by Brand
While the exact location can change from year to year, here are some reliable places to start your search for the most popular brands:
- Club Car: These carts often have a main fuse in an inline fuse holder that's connected directly to the wiring harness, usually somewhere near the main battery pack. For your accessory fuses, check under the front cowl or behind the dashboard panel.
- EZGO: The passenger-side glove box is the most common spot. On older models or for specific circuits (like the charger receptacle), you might find inline fuses tucked away near the very component they’re protecting.
- Yamaha: Yamaha carts typically put a central fuse block behind the dashboard. You can usually get to it by removing the front panel or by looking up from below.
Don't forget to check for inline fuses. These are just single fuses inside their own little plastic holder, spliced right into a specific wire. They're incredibly common for both main power circuits and any aftermarket accessories you might have installed.
Once you’ve located the fuse box, take a close look at the cover. Most of the time, it's your best friend. There’s usually a diagram molded right into the plastic that tells you which circuit each fuse protects and, crucially, its required amperage. This little map is essential for tracking down the right golf cart fuses when you're trying to figure out why your lights or horn suddenly stopped working.
Decoding Fuse Types and Colors
When you pop that cover off, you'll almost certainly be looking at blade-style fuses. These are the modern standard, and they’re color-coded by their amperage rating, which makes identifying the right replacement incredibly easy. Getting familiar with these colors is a must-have skill for any cart owner.
Here is a quick-reference guide to help you identify the amperage of a blade fuse based on its color. This is a crucial step for selecting the correct replacement and protecting your cart's electrical system.
Common Fuse Types and Their Amperage Color Codes
| Color | Amperage Rating (Amps) |
|---|---|
| Black | 1 |
| Grey | 2 |
| Violet | 3 |
| Pink | 4 |
| Tan | 5 |
| Brown | 7.5 |
| Red | 10 |
| Blue | 15 |
| Yellow | 20 |
| Clear | 25 |
| Green | 30 |
This simple color system takes all the guesswork out of finding the right fuse. It ensures you always replace a blown one with the proper rating, which is vital for protecting your cart's sensitive and expensive components. Grabbing the wrong one can cause much bigger problems than the one you started with.
How to Tell If a Fuse Is Actually Blown
Before you start pulling and replacing fuses, you need to be sure you’ve actually found the culprit. Just throwing new fuses at an electrical gremlin won’t solve anything, and it's a quick way to get frustrated. Fortunately, confirming a blown fuse on your golf cart is a simple process you can master in a few minutes.
There are two main ways to check, and every cart owner should know both.
The fastest method is a simple visual check. This works best for modern blade fuses and the older glass tube styles where you can actually see the guts of the fuse. Carefully pull the suspect fuse from its slot—a small fuse puller is ideal, but needle-nose pliers will do the trick in a pinch.
Once it’s out, hold it up to a light. Look closely at the little metal strip (the filament) that connects the two prongs on a blade fuse or the two end caps on a glass one. A healthy fuse will have a solid, unbroken filament. A blown fuse, on the other hand, will have a clear gap or even a dark, smoky smudge inside where the filament melted. That break is what stopped the circuit.
Getting a Definitive Answer with a Multimeter
A quick look is usually enough, but sometimes a fuse can have a tiny hairline fracture that’s almost impossible to spot with the naked eye. For a 100% foolproof confirmation, a multimeter is your best friend. This tool removes all doubt by testing for continuity—basically, it checks if an electrical path is complete or broken.
First things first, and this is non-negotiable for safety: disconnect your main battery pack. You never want to be poking around the electrical system while it’s live. Our guide on how to test battery capacity also drives home the importance of handling your batteries correctly.
With the power safely off, here’s what to do:
- Set your multimeter to the continuity setting. It's usually marked with a symbol that looks like a sound wave or a diode.
- Touch the two multimeter probes together. You should hear a beep, confirming the meter is working right.
- Now, touch one probe to each metal contact point on the fuse.
If you hear that same continuous beep, it means electricity has an unbroken path to flow through. The fuse is good. If you get silence, the path is broken. You’ve just officially confirmed the fuse is blown and needs to be replaced.
This simple multimeter test takes all the guesswork out of troubleshooting. It’s a skill that will save you a ton of time and make sure you’re fixing the actual problem instead of just swapping parts hoping for the best.
From an engineering perspective, the evolution of fuses in golf carts mirrors the broader trend toward safer, more powerful electric vehicles. As modern carts get loaded with more accessories and stronger motors, the demand for fuses capable of handling higher voltages has increased. For example, blade fuses rated for up to 40A are now commonplace, replacing older styles to safely manage these heavier electrical loads. You can learn more about these industry shifts from reports on the evolution of the global golf cart market.
Replacing a Blown Golf Cart Fuse the Right Way
Alright, you've tracked down the culprit—the blown fuse. That's the hard part, and you're just one small step from getting your cart rolling again. While swapping it out is pretty simple, doing it correctly is non-negotiable for your safety and the health of your cart’s electrical system.
Here's the most important rule of thumb: always work on a dead cart.
Before you even think about yanking that old fuse, disconnect the main negative terminal from your battery pack. This simple action removes any chance of an accidental short circuit while you're working. Once you're sure the power is cut, you can use a small fuse puller or a pair of needle-nose pliers to gently wiggle the blown fuse out of its slot.
Selecting the Correct Replacement Fuse
This is where you need to pay close attention. A simple mistake here can lead to some seriously expensive damage down the road. The golden rule is absolute: always replace a blown fuse with a new one of the exact same amperage rating.
If you pulled out a red 10A fuse, you must put a red 10A fuse back in its place. Grabbing a 15A or 20A fuse just because it's what you have lying around is a dangerous shortcut that completely defeats the purpose of the fuse in the first place.
A fuse is engineered to be the weakest link in the chain, sacrificing itself to protect more valuable components. Using a higher-rated fuse is like removing that safety net. Now, instead of the fuse blowing during the next power surge, the wiring itself or an expensive electronic component becomes the weak point. That can lead to melted wires, fried controllers, or even a fire.
Think of it this way: A 10A fuse is like a bouncer at a club who only lets 10 people through the door at a time. If you replace him with a bouncer who lets 30 people through, you're not making things better—you're just waiting for the door frame to break under the strain.
The Replacement and Final Check
With the correct new fuse in hand, press it firmly into the empty slot. You want to make sure it’s seated all the way down to create a solid connection. Once it's secure, you can go ahead and reconnect your battery pack to bring the cart back to life.
Now for the moment of truth. Test the circuit that wasn't working before. If your headlights were out, flip them on. If it was a USB port or radio, power it up. If everything fires up like it should, congratulations—you've nailed it.

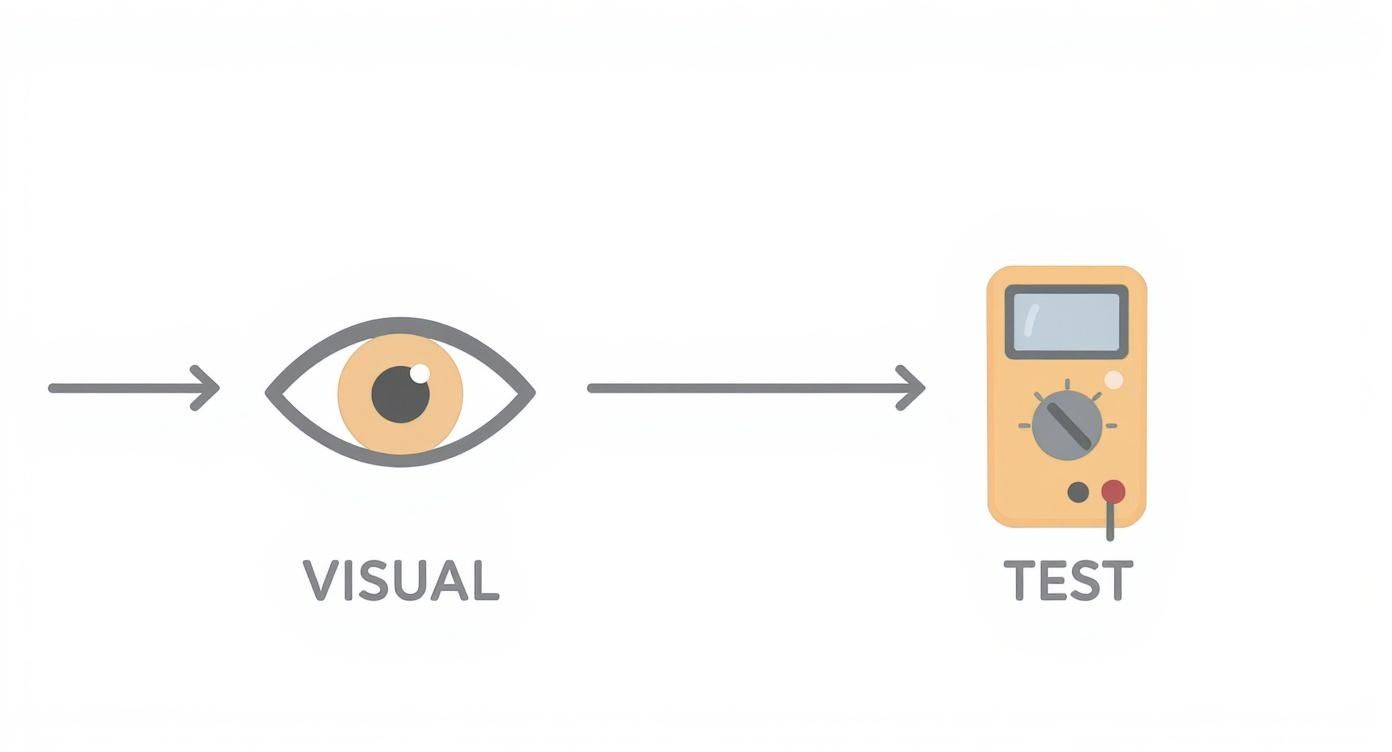

This diagram illustrates the two-step verification process: a quick visual check followed by a definitive multimeter test to confirm a fuse is blown.
Following this sequence ensures you don't waste time or money replacing parts that aren't actually broken.
What if the new fuse blows immediately after you test the circuit? That's a clear sign of a more stubborn problem, like a persistent short circuit that needs to be tracked down. For those tougher electrical mysteries, our DIY guide to electric golf cart repair can give you a deeper look at how to hunt down the root cause. Protecting your investment means doing the job right every time.
What to Do When Fuses Keep Blowing
There’s a special kind of frustration that comes from replacing a blown fuse only to have the new one pop the second you turn the key—or maybe a few minutes down the path. If this is happening, take a step back. This isn’t a sign of a bad batch of fuses; it’s your cart’s electrical system screaming for help.
A fuse that keeps blowing is just a symptom of a much deeper problem. Swapping in another one is like hitting snooze on a fire alarm. The new fuse is doing its job perfectly: sacrificing itself to protect your cart from a serious electrical fault. This usually points to one of two classic culprits: an overloaded circuit or a direct short.
An overload happens when something—like a new accessory—tries to suck more power than the circuit can safely handle. A short circuit is more direct; it happens when a "hot" wire makes contact with the metal frame or a ground wire, creating a dangerous, low-resistance path for electricity.
Hunting Down the Root Cause
Time to put on your detective hat. The first thing to do is think about what was happening right before the fuse blew. Did you just install a new light bar? Hit a particularly nasty pothole? Give the cart a power wash? These little details are often the breadcrumbs that lead you right to the source of the problem.
Some of the most common reasons for recurring blown golf cart fuses I've seen over the years include:
- Faulty Accessories: That brand-new USB charger or LED underglow kit could be defective right out of the box or, more commonly, wired incorrectly, creating a constant power drain.
- Chafed or Pinched Wires: Carts vibrate. A lot. Over time, that constant shaking can cause a wire's insulation to rub raw against the frame, eventually exposing the metal and creating an intermittent short.
- Corroded Connections: Water is the enemy of electronics. Moisture, especially around light fixtures, battery terminals, or switch connections, can create new, unintended pathways for electricity to travel.
A constantly blowing fuse is your electrical system’s early warning system. Ignoring it by installing a higher-amperage fuse is one of the most dangerous mistakes a cart owner can make, risking melted wiring, component failure, and even fire.
Visual Inspection and Diagnosis
Start simple. If the fuse blows when you use a specific accessory, disconnect that accessory completely. If a new fuse holds, you've found your culprit.
If it's not that obvious, it's time for a thorough visual inspection. Trace the wiring harness for that circuit from the fuse block to the component. Look for any wires that look pinched, stretched too tight, or have visible damage to their protective insulation. Pay close attention to areas where wires pass through the frame or near moving parts.
Getting a handle on your cart's electrical demands is crucial. If fuses keep blowing, understanding the basics of an accurate electrical load calculation can help you figure out if you're just asking too much of the system. For instance, reports show that adding accessories can increase the power demand enough to reduce fuse life expectancy by up to 30%, which is a huge factor in service calls.
Fixing these deeper issues takes patience, but it's an essential skill for anyone who wants to maintain a reliable battery golf cart.
Common Questions About Golf Cart Fuses
Once you’ve successfully swapped out a fuse, a few questions almost always come to mind. Let’s clear up some of the most common ones I hear from cart owners. Getting these answers straight will give you the confidence to tackle any future electrical hiccups.
Can I Use a Car Fuse in My Golf Cart?
This is a great question, and one that comes up all the time. The answer is a definite yes. The good news is that most modern golf carts, whether it's an EZGO, a Club Car, or another major brand, use standard automotive blade fuses—often the ATO or ATC type. You can grab these at any auto parts store.
The real key isn't where you buy the fuse, but what its rating is. The new fuse absolutely must match the exact same physical size and amperage rating as the old one. At the end of the day, a 15A fuse is a 15A fuse, regardless of whether it was intended for a car or your cart.
What Happens If I Use a Fuse with a Higher Amp Rating?
This is probably the single most dangerous mistake you can make with your cart's electrical system, and it can get expensive fast. Using a fuse with a higher amp rating totally defeats its purpose. A fuse is designed to be the weakest link in the chain—it’s meant to sacrifice itself to protect everything else.
If you put a 30A fuse where a 15A fuse is supposed to be, you’ve just removed that safety net. The next time there’s a power surge or a short, the fuse won’t blow. Instead, that excess current will cook the wiring, melting the insulation right off and creating a serious fire hazard. This is how you destroy expensive parts like a motor controller or your entire wiring harness.
Always, always stick to the manufacturer's specified amp rating. It’s printed right on the fuse and usually on the fuse box cover for a reason—it’s there to protect your cart from a total meltdown.
My Main 48V Fuse Blew. What Should I Check First?
If the big, main high-voltage fuse on your cart pops, that's a red flag for a major electrical fault. The very first thing you need to do is disconnect your main battery pack. Don't just flip the tow/run switch; physically unhook the main positive and negative terminals to make sure the system is completely dead and safe to work on.
With the power off, it's time for a good visual inspection. Trace the heavy-gauge cables that run from the battery pack to the solenoid and then to the motor controller. Look for any signs of damage—frayed insulation, heavy corrosion, or any spot where a cable could be rubbing against the metal frame and shorting out. Give the controller itself a once-over for any burn marks or that unmistakable fried-electronics smell.
Often, a blown main fuse points to a failed solenoid or a shorted motor controller. If you put in a new fuse and it blows the second you reconnect the battery or turn the key, you’ve got a dead short somewhere. At that point, it’s probably time to call in a professional to safely diagnose the problem.
Do Accessories Have Their Own Fuses?
They sure do. Just about every aftermarket accessory—lights, a radio, a USB charger—will have its own dedicated fuse. And if it doesn't, it should. So, if your cart still drives fine but your stereo suddenly goes silent, the first place to look is the accessory's own fuse.
You'll usually find an inline fuse, which is a little plastic holder spliced into the accessory's main power wire. Sometimes, accessories are wired into a small, separate fuse block that might be tucked away under the dash. These are almost always lower amperage fuses, typically in the 5A to 15A range, depending on how much power the device needs.
